What is stereo?




There are now two system of high fidelity, monophonic (monaural) and stereophonic. Monophonic is a system that starts from one microphone and is fed through a single high fidelity set. Stereophonic is a double system. Two separate microphones are placed at different sides of the orchestra and two different systems are used to keep the two signals or channels separated. Two separate speakers are used, placed on different sides of you room. Stereo is much like 3-D photography, two slightly different sound reach your ears giving you a new dimension in sound.



H.H. Scott '59

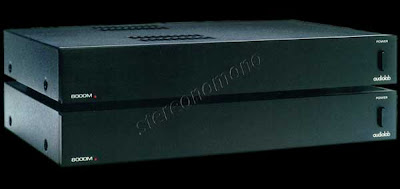

Audiolab 8000M Mono Power Amplifier

The Audiolab 8000M Monobloc Power Amplifier delivers truly refined sound with real power and drive. It copes naturally with the most delicate nuances through to the full power of a symphony orchestra or rock-band. Many of today's loudspeakers are designed to be bi-wired, that also means they can be operated with a separate power amplifier connected to each speaker section e.g. HF and LF. With over 125 watts output this compact and versatile design is ideal for any system requiring two, four or even more power amplifiers.

Each 8000M has two sets of speaker output terminals for bi-wiring.

Parallet in-out phono connectors make it easy to connect several pairs of 8000M's in either a dedicated audio system or a top-line multi-amp AV system. A comprehensive user manual includes full instructions for the connection of bi-wired and tri-wired speakers.

Features:

125 watt monobloc power amplifier

Two sets heavy duty speaker terminals

Line level in-out phono connectors

Compact design with high efficiency heatsink

DC servo feedback

Specification

Power Output: 125 Watts per channel into 8 ohm

Input Impedance: 47 Kohm

Gain: 29 dB (at 1 kHz)

Signal To Noise: >96 dB

Frequency response: 20 Hz - 20 kHz (± 0.3dB)

Total Harmonic Distortion: <0.05%

Dimensions (WxHxD): 445 x 74 x 337 mm
