What is stereo?

There are now two system of high fidelity, monophonic (monaural) and stereophonic. Monophonic is a system that starts from one microphone and is fed through a single high fidelity set. Stereophonic is a double system. Two separate microphones are placed at different sides of the orchestra and two different systems are used to keep the two signals or channels separated. Two separate speakers are used, placed on different sides of you room. Stereo is much like 3-D photography, two slightly different sound reach your ears giving you a new dimension in sound.

H.H. Scott '59

DOMA - Grido CD

Il lettore CD Grido è nato dall’esigenza DOMA d’avere una sorgente d’alta qualità ma anche
esente da qualunque caratterizzazione, per realizzare i propri test. DOMA ha quindi sviluppato un lettore ritenendo che il formato audio codificato PCM utilizzato per i CD sia maturo per esprimere tutte le sue potenzialità, a differenza dei successivi formati (DVD-Audio e SACD) che soffrono ancora di molte carenze a livello sonico, per non parlare della limitata disponibilità di software.
In seguito DOMA ha deciso di produrlo in serie limitata.

Le particolarità più evidenti sono:
· Stessa veste estetica che caratterizza la linea Grido.
· Contenitore antirisonante completamente in alluminio (8Kg).
· Meccanica a base stabilizzata.
· Stadio d’uscita analogico a valvole.
· Massima cura nella conversione D/A, nella riduzione del jitter, nelle alimentazioni.
· Spegnimento automatico del display durante la riproduzione.
Caratteristiche tecniche :
Formati compatibili: CD, CDR, CDRW
Convertitore Audio D/A: Legato Link
Sistema di conversione audio D/A: HiBit
Sovracampionamento: 8x
Separazione canali audio: 100 dB
THD: 0.0028 %
S/N: 108 dB
Uscite audio analogiche: Stereo con connettori RCA
Uscite digitali: Coassiale (s/pdif-RCA), ottica (tos-link)
Massima tensione in uscita: 10 V
Consumo della rete: minimum 10 W, maximum 50 W
Dimensioni: 440 x 115 x 380 mm (L x A x P)
Peso: 14 kg
Note: Telecomando


The HR-X features a triple laminated chassis (Acrylic-Aluminum-Acrylic), integral air suspension (which rejects up to 98% of acoustic feedback) and an inverted main bearing incorporating a hardened steel ball running on a Teflon/Delrin composite.
An outer periphery record clamp centers on the platter, not the record, to provide vacuum-like
hold down without the problems inherent in a vacuum system. The drive system uses two lowpowered 24-pole motors driving a 12-pound flywheel, the flywheel spins at 300 RPM and has 62 times the inertia of a 25 pound platter. The drive system and the periphery clamp result in wow, flutter, and rumble that are all below measurabilityproviding the most stablesound ever heard from a turntable.

The VPI HR-X's triple layered X-shaped plinth has a gorgeous, glossy black finish with aluminum accents, an air bearing suspension, an ingenious motor & flywheel combo and equipped with VPI's best tonearm, the JMW-12.7. The best part is, the HR-X only takes up 25” x 19” of space. Every aspect of the VPI HR-X has been optimized for maximum performance. The acrylic platter is cut to tolerances within five thousandths of an inch and sits on an inverted bearing for lower noise and lower rotational inertia. The JMW 12.7 tonearm is mounted directly to the HR-X plinth for exceptional rigidity. The new HR-X drive system consists of two ultra-low powered motors on either side of a seven pound, center mounted flywheel which spins at 500 RPM. The included Outer Ring Clamp works like a vacuum to hold down the outside edge of the record. The SDS speed controller delivers absolute speed accuracy.
The new JMW 12.5i Memorial tonearm begins where the JMW 12 left off. Although they share much of their predecessors' design, including the precision unipivot, damped stainless steel/aluminum arm tube, the 12.5i incorporates several significant improvements.

A secondary mounting with underbase has been placed between the arm rest and the arm lift to greatly improve the arm's rigidity literally making these the only arms that can do VTA adjustments while listening and then be locked as rigid as a solid mounted arm. Do not discount this function, it counts for the speed and low bass detail in the 12.5i.

Nordost Valhalla wire is standard.

The Synchronous Drive System (SDS) combines a turntable motor speedcontroller and a line isolator into one convenient 16” x 3” x 12” (W x H x D) package. The SDS breaks new ground in clean accurate power delivery using advanced digital technology and quartz crystal accuracy. The SDS allows for the adjustment of both the voltage and frequency fed to the turntable motor. Adjustments are easily made from the front panel using intuitive, soft touch controls. The selected output voltage and frequency are shown using large, easy to read LE D displays.
The SDS slowly ramps the voltage and frequency up or down to the selected value in order to prevent premature motor wear due to abrupt changes. During motor startup, the SDS increases its output voltage in order to bring the platter up to speed quickly. Once the desired platter speed has been reached, the SDS ramps the output voltage down in order to reduce motor vibration and, therefore, the systems noise floor. The circuit used in the SDS provides an incredibly accurate line frequency of great stability. Additionally, the electronic circuitry effectively isolates the output voltage from the input voltage, doing away with voltage spikes,
low level fluctuations, RF I, and frequency variations. Instead of merely filtering the power line, the SDS first changes it into pure DC voltage and then digitally regenerates its own clean signal. This approach is superior to that used in many of the other power lineconditioners on the market. The SDS works best with synchronous motor driven tumtables, such asthose from VPI. The speed of a synchronous motor is determined by thefrequency it is fed. It is only logical then, that a device whose speed is based on the line frequency will always function better when a stable frequency is delivered. A constant motor speed translates into a quieter, more faithful musical presentation.
Ringrazio a Vittorio di STEREOPLACE per la cortese dimostrazione del giradischi

Graaf GM 70 Phono Preamplifier

The philosophy of GM 7O phono stage design, is the most typical for GRAAF, followed for its whole production. It regards mainly the insertion of the active elements in an environment that is able to let them express their complete potential. The same importance is given to the full exploitation of each component own characteristics, so to avoid the use of additional circuits, which could interfere on the musicality of the performance. Therefore, RF filtering is obtained by the inner characteristics of active components used, and not with the recourse to a passive network. In the same way, in order to obtain the correct input sensitivity for MC cartridges, there is not any additional gain stage. Instead, a variable gain Implement has been chosen, because it has a simpler lay out and is more transparent to music.
RIAA eq is made by a completely passive network, placed after the gain stage. Its components have been calibrated with the greatest care to maximize the response precision and the purity of the musical signal, with the help of critical listening tests as well. Power supply implements the same transformers section of GM 13.5 B II, quite huge, followed by independent filtering for gain and RIAA stage, and for output stage.
The correct electric interface between cartridge and phono stage has been carefully regarded. The knob on the back side of the unit is for the selection of six different impedance loads. Wishing to have a custom load, it is possible to use the upper RCA plugs to connect a resistance of the proper value.
The input stage is based on two pairs of PC 9OO tubes. Gain stage and output buffer stage use a pair of 6922 tubes each, chosen for their linearity, low noise and musical characteristics. The active components used by GM 7O and the whole GRAAF production are subject to a very hard selection, that guarantee the full correspondence of each unit to the reference specifications.
Built manually one by one, with components selected with the greatest care, tested by a severe burn in procedure that go on no stop for several days, each one presented to the definitive approval of the designer in person, given only after a careful listening test, GRAAF electronics have all the qualities to fulfil the most discerning of the listeners, first of all for purity of sound and luminousness of timbre.
Frequency Response:  20 Hz - 20 kHz
50 KHz Attenuation:  28 dB.
100 kHz Attenuation:  34,8 dB
Input Impedance:  38, 56, 100, 500, 1000, 4700 Ω
High Gain:  56 dB
Signal-to-Noise Ratio:  73 dB
Separation:  60 dB
Low Gain:  46 dB
Signal-to-Noise Ratio:  82 dB

Separation:  70 dB

Graaf GM 20 OMT

The GM 2O power amplifier uses an OTL (output transformerless) and OCL (output capacitorless) configurafion. The benefits of this type of circuit are very widely recognised and may be summarised as providing unrivalled transparency, speed and dynamics. OTL / OCL designs avoid the need to couple the loudspeaker load by means of an output transformer. In the GM 2O therefore the output stages are directly coupled to their respective loads. The circuit in each of the two power stages is based on a bridge in which the 6C33C tubes represent two of the four sides. The GM 2O uses a fully differential and balanced configuration (i.e. symmetrical) and is DC coupled between each of its stages with great benefits in terms of immunity to noise, including noise from AC mains.

Great care has been taken to ensure stability in all the working stages of the amplifier, making them practically immune to variations in the characteristics of the active components (thermic, static and dynamic) and maintaining their special character unaltered over time. The power supply is made up of six distinct sections, four of which float with respect to ground and provide power for the output stages. The remaining two sections provide power for the driver and gain stages. This method of supplying energy to the various stages of the amplifier is an excellent solution to the problems inherent in providing many different voltage values which are commonly used in valve amplifiers.
Two 6C33C triode valves are used in each of the two channels' power stages, conceived in such a way as to make the best use of the ability of these tubes to give high current with a low voltage power supply. These power tubes, not normally used in less sophisticated circuits, represent an ideal choice for an OTL design thanks to their great robustness and surprisingly good sound quality.
The power amplifier input stage uses two 6922 double triodes which are not only responsible for the voltage gain but also operate as impedance adaptors. The driver stages, working with two triode-coupled
EF 1 84 pentodes, take advantage of the differential circuit mentioned above and work also as phase splitters. This guarantees good driving ability for the power tube grids and perfect symmetry between the two signals, which are in push-pull mode, and are used from the power stages.
It's important to add that each channel voltage gain and driver create together a double differential cascade stage which is able to create a high CMRR.
The stabilizing offset and bias circuits fitted to this power amplifer ensure completely trouble-free setting-up. In the GM 2O loudspeaker protection is guaranteed by a sophisticated circuit which does not make use of series relays or current limiters, since the tubes themselves are naturally current-limiting.

 A small amount of feedback (6dB) is used to allow the GM 20 to drive even difficult loudspeaker loads without problems. The particular circuit design described above allow excellent results to be obtained from the GM 2O.
As can be seen from the attached specifications, the performance is of a very high order. For example, the bandwidth extends from 1 Hz to beyond 35OKhz!
As befits an amplifier of this class, it is possible to use the two inputs L and R in balanced mode by means of XLR plugs or in unbalanced mode via RCA phono plugs.

Function:  OTL/OCL Tube Power Amplifier
Output Power:  20+20 W RMS [Stereo], 65 W RMS [Mono]
Output Impedance:  8 - 16 Ω , 4 - 16 Ω [Mono]
Input Sensitivity:  600  mV
Input Impedance:  50 K Ω
Total Harmonic Distortion:  0.4% at 1W
Signal-to- Noise Ratio:  unweighted  85 dB,  weighted  95 dB A
CMRR:  60 dB
Frequency Response:  1 Hz to 350 KHz (-3 dB)
Rise Time:  1 µsec.
Damping Factor:  4
Negative Feedback:  6 dB
Using tubes:  6922 x 2;  EF-184 x 4;  6C33C x 4
Power Supply:  120/220 V, 50/60 Hz
Power Dissipation:  450 W
Dimensions (W x H x D): 350 mm x 215 mm x 440 mm
Weight:   22 Kg
Finish:  Ferrari Black

DUAL CS 1237 (1977)

Function and regulation:
Operation in single and multi play mode
Balancing of the tonearm
Setting of the stylus pressure
Anti-skating  mechanism
Cue control shock-free
Pitch control and calibration of Pitch control

This is our lowest-priced turntable, yet we confidently invite you to compare it with anyone else's highest-priced turntable. Your're not likely to find a tonearm that seriously matches the CS1237's with its four-point gyroscopic gimbal suspension and all th eother design features with other Dual tonearms.
You might, in fact compare the CS1237 tonearm with one of the more exotic separates. You'll find they cost as much as the entire CS1237
Among the CS1237's many features are the folowing:
The cueing system is damped in both directions to prevent bounce.
Pitch  control is variable over a 6 percent range.
The strobe platter is die-cast aluminum and machine-balanced.
Vertical-bearing friction is astonishingly low-less than 8 milligrams. it can track as low as 0,25 gram - which means it will allow any cartridge to operate at its own optimum tracking force.
And if you compare the CS1237 with the higher-priced Dual turntables you'll find they have additional refinements, but no difference in design integrity or manufacturing quality.

The CS 1237's tonearm is mounted in a four-point gyroscopic gimbal-widely acknowledged as the finest suspension system available. The tonearm is centred, balanced and pivoted exactly where the vertical and horizontal axes intersect.
From pivot to tonearm head, the shape is a straight line, the shortest distance between those two important points. Curved tonearms may look sexier, but at the cost of extra mass, less rigidity and lateral imbalance - none of which is consistent with good engineering practice.
Tracking force is applied by a flat-wound spring coiled around the vertical pivot, and this force is maintained equally on each groov wall whether or not the turntable is level. The tonearms's perfect balance is maintained throughout play.
By contrast, tonearms which apply tracking force by shifting the counterweight forward are actually unbalanced during play and prone to mistracking. For example, on warped records the stylus tends to dig in on the uphill side of the warp and to lose contact on the way down.
Vertical-bearing friction in the CS 1237 tonearm is astonishingly low - less than 8 milligrams. It can track as low as 0,25 gram - which means it will allow any cartridge to operate at its own optimum tracking force.
There's  still more. The counterweight is carefully damped to attenuate tonearm resonances. Anti-skating is separately calibrated for all stylus types. Cueing is damped in both directions to prevent bounce. And because the CS 1237 can play up to six records in sequence, the stylus angle can be set for optimum vertical tracking in either single-play or multiple-play.
To find any other tonearm that seriously matches the CS 1237's, you have two choice.
You can consider one of the more exotic separates. But you'll find they cost as much as the entire CS 1237 (price: less than $180, complete with base and cover)

Or you might compare it with one ofthe higher-priced Dual turntables. You'll find a few additional refinements, but no difference in design integrity or manufacturing quality. Which is why no other turntable quite matches a Dual , any Dual

all Dual tonearms are mounted in this four-point gyroscopic gimbal. Tonearm mass iscentered and pivots precisely where the vertical and horizontal axec intersect

Straight-line tubular shape of all Dual tonearms provides maximum rigidity with low mass. Offset angle of tonearm head achieves lowest angle of tonearm head achieves lowest possible horizontal tracking error. Curved lonearms with the same effective lengh require more mass

Technical data
Drive:  Dual 8-pole synchronus motor with precision flat beltfor flywheel drive
Power Consumption:  ‹ 10 watts
Current Drain:  64 mA approx. at 220 V, 50 cycle;  115 mA, at 110 V, 60 cycle
Platter:  non-magnetic, detachable ;  1,00 kg, 270 mm diameter
Turntable Speeds:  33 and 45 rpm
Automatic tonearm set-down coupled to speed adjustment
Pitch Control Variation:  adjustment range of approx. 1 semitone (6%) at both turntable speeds
Total Wow and Flutter:  less than ±0,10 % (according to DIN 45 507)
Rumble:  unweighted  better than 40 dB,  weighted  better than  60 dB
Tonearm:  Torsion-resistent tubular aluminium tonearm in four point gimbal
Tonearm Bearing Friction:  (related to stylus tip)
Vertical :  less than 0,08mN (0,008 g)
Horizontal :  less than 0,16 mN (0,016 g)
Cartridge Holder:  removable, accepting any piezo-electric cartridges with ½"mounting and a weight from4,5  to 10 grams (including mounting hardware)
Stylus Pressure:  from 0 - 50 mN (0 -5 g) infinitely variable, operable from 5 mN (0.5 gram) stylus pressure up.
Adjustable Overhang:  5 mm
Cartridge:  see separate data sheet
Power Supply:  AC, 50 or 60 cycle, changeable by changing motor pulley
Power Supply Voltage:  110-125 V or 220-240 V, switchable
Chassis: 13 x 10¾ inches;
Base: 16½ x 14½ x 3½ inches;
Height with cover:  7¼ inches
Weight:  approx. 4,6 kg


Photo gallery
Sensitivity IHF: 2,0 uV
Quieting S/N = 50 dB: 4 uV
Limiting: -3 dB: 1,4 uV
Selectivity: 60 dB
Capture Ratio: 1,0 dB
Image Rejection: 60 dB
THD Mono: 0,2%
S/N Mono: 65 dB
AM Suppression: 50 dB
Frequency Response: 10 Hz to 15 kHz ( -3 +1 dB)
Output Level/Impedance (1kHz, 100% Mod.):
Fixed: 500 mV/10 KΩ
Variable: 1V max/ 5 KΩ
Quieting (S/N=50 dB): 50 uV
Subcarrier Rejection (19 kHz, 38 kHz): 45 dB
THD: 0,5%
100 Hz - 35 dB
1 kHz - 40 dB
10 kHz - 35 dB

AM Section
Usable Sensitivity (S/N=20 dB):
IHF, Bar Antenna: 300 uV/m
Selectivity: 35 dB
Image Rejection: 40 dB
S/N: 45 dB
Output Level /Impedance (400 Hz, 30% Mod.):
Fixed: 150 mV/10 KΩ
Variable: 300 mV/ 5 KΩ

Dimension (W x H x D): 400 x 132 x 290 mm
Weight: 6,6 kg

McLaren ML-3838

Photo gallery

Power Output, Continuous RMS (both channels driven at 1 kHz):
Into 8 ohms: 45 W
Into 4 ohms: 55 W
THD at 1 kHz Rated Output: 0,1%
IM Distortion at Rated Output: 0,2%
Power Band Width at Half Power, 0,2% THD: 10 Hz to 45 kHz
Damping Factor at 1 kHz, 8 ohms: 35
S/N Ratio, CCIR Weighted;
Aux/Tuner, Volume min: 95 dB
Aux/Tuner, Volume max: 90 dB
Phono, Volume max: 70 dB
Mic., Volume max: 70 dB
Input Sensitivity:
Phono: 2,5 mV
Mic: 2,5 mV
Aux/Tuner: 160 mV
Phono Input Overload: 140 mV
Crosstalk: 55 dB at 1 kHz, 45 dB at 10 kHz
Tone Controls:
Bass 100 Hz, Treble 10 kHz: ±10dB
Loudness Boost: 8 dB at 100 Hz, 4 dB at 10 kHz
Subsonic Filter At 20 Hz: -12 dB
Power Requirement: 220/240 V AC, 50/60 Hz, 300 W max
Dimensions (W x H x D): 400 x 132 x 290 mm
Weight: 8,85 kg

Sansui LM-330 (1975/1976)

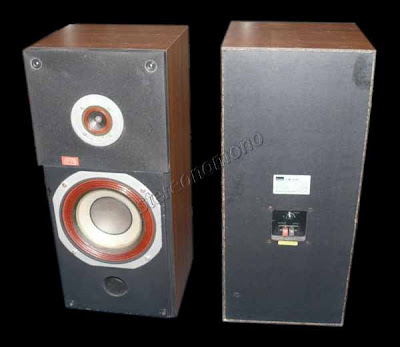

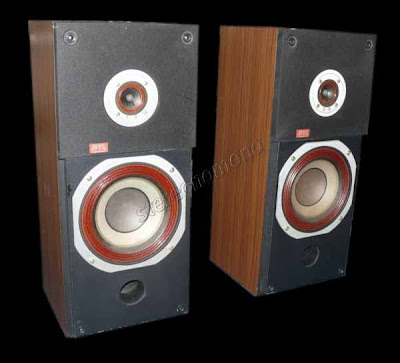

Sansui has again challenged traditional thinking in speaker system design. And again the results mean spectacular improvements in reproduced sound under actual listening conditions in your home. The new LM Series represents not just a revolution in design but a re-evaluation of high fidelity reproduction standards as well. Another great step in the realistic world of musical sound.
The unique multi-radiation baffle for the LM (Linear Motion) tweeter driver utilizes back radiated sound energy to enhance the overall sense of perspective sound image resolution and location in actual stereo application. It features three exponential horns to channel some of the out-of-phase backradiated sounds of the tweeter into the listening field. Essentially this unusual design emphasizes certain phase difference relationships in multi-channel music to give us a greater sense of stereo perspective. The fact that the separately-baffled LM tweeter driver has very free movement against input signals means better transient response too much better.

The proof of these improvements is yours to enjoy in three LM models.
LM-110 (35 watts peak),
LM-220 (45 watts peak)
LM-330 (60 watts peak).

Linear Motion Tweeter Driver
The LM Tweeter itself is a Sansui-exclusive Linear Motion Driver with a CCAW (Copper-Clad Aluminum Wire) voice coil to reduce moving mass and help improve transient response. The diaphragm features a steeply convex phase equalizer to eliminate phase interference inside the cone for better high-end response.

Improved Transient Response
Since the LM Tweeter is mounted on a separate baffle, as explained below, it requires no back cap or cavity to block out the strong and potentially damaging high pressure waves created by the woofer in the enclosure. The die-cast aluminium frame on the tweeter itself is ported to correspond to the three openings in the multi-radiation baffle, and the tweeter diaphragm is free to move to and fro in linear response to input signals with fast rise time. The result is free Linear Motion in the air on in technical terms, better transient response. The pure sounds of the LM Tweeter prove the  advantages over the blurred and muddy effects of less transient types at first hearing.

Three Horn-Shaped Ports
The special baffle for the LM Tweeter is mounted independently on the upper front of the LM enclosure. As illustrated its three ports in the tweeter assembly to channel the back-radiated sounds of the tweeter into the listening area in three directions - left, right and up. After testing over thirty full-scale LM prototypes, and the baffle as it appears here has been proven to emit just enough sound information in the high frequency range to achieve the unusually effective results .

Greater Stereo perspective
The sense of presence and ambience in stereo sound is much improved by the unique LM approach of course. But it is in the precise sound-image location effect that the new design truly shows its stuff. The emphasis on the difference in sound pressure levels inn the respective channels means that any and all between the channels sound images can be located exactly as they were intended by the recording engineer.
Enlarging each image as some speaker systems claim to do is not the answer to better stereo perspective. The LM approach in fact makes each individual image smaller with no loss in perceived level. In this way each has a more distinct focus or identity, more breathing room, more personality. And when they are located along the sterohorizot the perspective itself seems to widen and deepen as it does in live listening conditions.

Natural Response Woofer
The low-frequency driver in the LM has a number of unusually advanced features for mor natural bass respons, making it the perfect mate for the improved LM Tweeter system.
The superlight woofer cone is formed by a special non-press molding process and features a unique multi-corrugation design to achieve for proper stiffness and internal loss to create a living bass tone. To suspend this cone without defeating its best qualities. Sansui engineers designed an accordion-crease surround itself of appropriate stiffness and acoustical properties. The concave equalizer in the throat of the cone is still another new Sansui design and it serves perfectly to improve response near the crossover frequency. Finally, the LM woofer features a particularly strong magnetic circuit and voice coil, further extending the unit's ability to respond with linear motion to even extremely high level input signals with proper damping for improved linearity.

Special Crossover network
The crossover network in each LM model uses a special high-permeability core inductor to reduce DC resistance. This in turn provides a high damping factor and holds distortion to 1,0% or below even when maximum (peak) power is introduced. The non-polarized electrolytic type capacitors of particularly lower energy loss in the high (above 10,000 Hz) frequency are 1,500 Hz  and high frequency response can be adjusted by a rear panel control.

Luxurious Cabinet
Every LM Series speaker system regardless of size or power- handling capacity is crafted to blend harmoniously with all room decors. The polished walnut grained wood cabinet is solidly built and expertly finished with pride and the trim, pleasingly-textured front grille is a one-piece, removeable unit which protects both the separately-mounted LM Tweeter and the woofer cone.

Woofer: 255 mm (10") Cone Type
Tweeter: 65 mm (2 ⁹/₁₆") Cone Type
Power Rating:  60 watts (peak)
Impedance:  8 ohms
Sensitivity:  92 dB/W (New JIS 1 m)
Frequency Range:  31 to 20,000 Hz
Crossover Network:  2-way 12 dB/oct L-C Parallel Type
Crossover Frequency:  1,500 Hz
Finish:  Simulated wood grain
Dimensions (W x H x D):  310 x 710 x 304 mm (12- 1/8" x 28" x 12")
Weight:  18,7 kg (41,2 lbs) net, 20,7 kg (45,6 lbs) packed

Accuphase P-800 (1988)

Balanced Stereo PowerAmplifier
Completely balanced powerful output stage consisting of two sets of 7 parallel push-pull transistor pairs
Outstanding low-impedance drive capability
Separate power supplies for left and right channels
Balanced input

Ever since the advent of pulse coding method to record electric signals, the world of reproduced music is about to underego significant changes, because the digital recording technology has brought about substantial improvement in the reality of the reproduced music. Moreover, minute and subtle reverbration components, which are essential to reproduce the atmosphere of the original sounds, can now be recorded with utmost accuracy.

Needless to say, accurate transmission of signals is indispensable in the reproduced sound fields; otherwise, we cannot even appreciate the reproduced music and in the worst case, we may not be able to perceive what we listen to as music but nothing more than collection of noises. Equally important for reproducing music, however is an amplifier that can correctly amplify even reverbration components to reproduced music, as if the music were being played by an orchestra right in front of you. Without such an amplifier, the atmosphere of beautiful and elegant music cannot be reproduced. It is therefore vital for a power amplifier to be able to yield power of high amplitude and, at the same time, to amplify minute signals superimposed on the electric signals it amplifies, with high fidelity. However the power an amplifier can produce and its fidelity are, in many case, in a mutual contradictory relation, and the higher power an amplifier can produce, the lower its fidelity in reproducing minute signals and reverberation components. The P-800 which was developed with Accuphase's technology that has already produced a superb monophonic amplifier, M-1000 is an exceptional power amplifier in this respect as it can yield a power of as high as 600 watts (into 4 ohm loads), but reproduce even reverberation components with high fidelity, which is not possible with most of the amplifiers on the market today. Its uses two power units in bridged configuration, forming a totally balanced amplifier, meticulous attention has been paid to every detail, and original Accuphase technology is used throughout, with the aim to improve quality especially at low signal levels.

The impedance of loudspeakers on the market varies considerably, ranging from about 2 ohms to 16 ohms. With a direct-coupled amplifier, driving such a wide impedance range with equal aplomb is almost impossible. An output stage designed for optimum performance at 2 ohms will deliver less power into 8 to 16 ohms. Conversely, the performance of an amplifier optimiozed for about 4 to 8 ohms suffers at 2 ohms and it will not be capable of driving 1-ohms loads.
The P-800 incorporates a special design to deal with a wide range of load impedances. The applied voltage of its output devices can be switched to a lower value, to provide the high current capability required by low-impedance loads. This results in a truly amazing guaranteed rating of 600 watts into 1 ohm and 400 watts into 2 ohms, with undiminshed sound quality. To achieve such stunning performance the output stage of each power unit employs two sets of seven parallel push-pull pairs of wide-band transistors with a maximum power dissipation of 130 watts each. This amounts to 14 pairs or 28 transistors per unit, totaling a maximum powe dissipation of 3,6 kilowatts. These truly astounding figures testify to the no-holds-barred Design approach of the P-800.

To let you monitor its performance, the P-800 incorporates two symmetrically arranged analog level meters.
The beautiful and simple elegance of this amplifier's external appearance belles its awesome performance. But when turned on, it speaks unmistakably through music.

Totally balanced construction with two separate power units for ultimate sound quality
Accurate reproduction of sound field with two independent power supplies
Ultra-powerful output stages consisting of two sets of seven parallel push-pull transistor pairs each
Excellent low-impedance drive capability - 600 watts into 1 ohm, 400 watts into 2 ohms
Cascode differential push-pull input stage tuned for perfection
"Cascode push-pull + MOSFET cascode pus-pull" drive stage for minimum distortion at low levels and superior high-range stability
Large analog power meters reading -60 dB to +3 dB
40-kilohm balanced input and 20-kilohm unbalanced photo jack

Performance Guaranty
All Accuphase product specifications are quaranteed as stated
Continuous Average Power Output (20 -20,000 Hz):
Normal load impedance operation (THD 0,01%)
600 W/ch into 4 ohms
400 W/ch into 8 ohms
200 W/ch into 16 ohms
Low load impedance operation (THD 0,05%)
600 W/ch into 1 ohm
400 W/ch into 2 ohms
200 W/ch into 4 ohms
Total Harmonic Distortion:
0,05% with 1 to 4 ohmload
0,01% with 4 to 16 ohm load
Intermodulation Distortion: 0,003%
Frequency Response:
20 to 200,000 Hz ±0 dB (for rated output, level control at max.)
0,5 to 150,000 Hz +0, -3,0 dB (for 1 watt output,level control at max.)
0,5 to 80,000 Hz +0, -3,0 dB (for 1 watt output, level control at -6 dB)
Gain: 28,0 dB
Output Level Impedance:
4 to 16 ohms in Normal load impedance operation
1 to 4 ohms in Low load impedance operation
Damping Factor (EIA, 50Hz): 200
Input Sensitivity:
Normal load impedance operation
2,25 V for rated output into 8 ohms
0,12 V for 1 watt output into 8 ohms
Low load impedance operation:
1,13 V for rated output into 2 ohms
0,06 V for 1 watt output into 2 ohms
Input Impedance:
Unbalanced: 20 kilohms
Balanced: 40 kilohms
Signal-to Noise Ratio (A-weighted):
125 dB with input shorted at rated output
95 dB with 1 kilohm input termination at 1 W output
Power level Meter:
Logarithmic compression scale, peak reading -60 dB to +3 dB and direct watt-reading scale
Semiconductor Complement:
158 transistors, 20 FET's, 15 ICs, 158 diodes
Power Requirements:
100/117/220/240 V, 50/60 Hz AC
Power Consumption:
110 watts + 110 watts idle
610 W + 610 W in accordance with IEC-65
740 watts + 740 watts at rated power output into 8 ohms
Dimensions (W x H x D): 481 x 239 x 489 mm (18¹⁵/₁₆ x 9¹³/₃₂ x 19¼ inches)
Weight: 47,2 kg (103,8 lb) net, 55,2 kg (121,4 lb) inshipping carton

Pioneer PD-7100 (1989)

Compact Disc Player
8-times oversampling digital filter: Higher resolution and lower noise
The CD format uses a sampling frequency of 44,1 kHz, to provide a frequency bandwidth of from about 0 Hz to 20 kHz. This frequency can result in the generation of "sampling" noise because its "foldover" frequencies are spactrally close to he audible frequency range. These spurious frequencies - known as sampling noise - are normally eliminated by a higher-order analog filter with steep attenuation response. Such filters, though tend to cause aphase lag in frequencies of 10 kHz and highr, making accurate signal reproduction impossible.
Our 8-times oversampling digital filter offers the solution. It samples the input signal at 8 times the normal frequency (that's 352,8 kHz), shifting the spurious frequenciec far out of the audio range. This makes it possible for us to use a low-order analog filter , made from high-quality discrete parts,with mild attenuation response to remove the spurious frequencies. So our 8-times over-sampling digital filter ends due to folder frequencies, whike maintaining accurate phase linearity up to 20 kHz and enabling low distortion output.

Accu-Focus System: For better frequency response in RF output
The laser beam teht reflects off pits on the surface of tehCD holds billions of bits of digital musical information. The beam is detected by a pickup and the signals are passed on to a photodetector where they are converted into electric RF signals. The photodetector is divided into four components to control the focus servo, inevitably causing phase difference between the four signals the detector has received. The accu-Focus System, however, solves this phase-related problem by adding a delay circuit for the first - ariving signals thus dramatically reducing distortionand improving frequency response in the RF out[ut, especially at high frequencies. As a result, boot noise and distortion, are reduced in the audible frequency range.

Linear-envelope D/A conventer system with twin glitch-less Converters
Our linear-envelope D/A converter system is one of the most advanced designs. Conventional converents use 16 current sources to convert 16-bit data into analog; with them even the slightest error in the current sourcs can lead to conversion distortion. With our new linear-envelope converter, however, we've virtuality eliminated the current-source error. Thus ending conversion distortion.
Moreover there are two converters, one for each channelto end inter-channel phase difference and to provide better sound imaging. And each is a glitch-free type for lower noise.

Linear-motor pickup drive: For stable disc tracking and quick track access

Class-A FET buffer amp: For reduced distortion and improved sound quality
Four separate power supplies: Clean sound beacause analog circuits are insulated from digital crcuits
Anti-resonance concept: Honeycomb chassis, magnetic-clamp disc stabilizer, large insulators
To ensure superb disc tracking and great sound, we,ve come up with the Anti-resonance concept. This concept is expressed in our CD players in the following ways.
The chassis of all our CD players have a ribbed honeycomb construction. This design not only increasses rigidity but also protects the pickup and disc drive system inside from vibration generated by speakers and other external influences.

Optical and coaxial digital outputs
Auto program editing
Time fade editing and "Music Window"
Digital level control: For low-noise, precise level adjustment
On touch digital fade
Variable fade: Fade time may be adjusted from 0 to 9 seconds during operation of Music Window, time fade edit or one-touch fade
Full function SR emote control
Random play: To add fun and variety to digital listening
Ready to play 3-inch (8 cm) CD's
Random programmed play of 24 track
Programmable pause
Repeat: 1 track,all tracks, programmed tracks
Auto space and index search
20 tarck music calendar
10 digit fluorescent display
Headphone output with volume control
Timer play (timer optional)
Subcode output

System: Compact disc digital audio system
Frequency response: 4 - 20,000 Hz ±0,5 dB
Signal-to -Noise Ratio: 107 dB
Dynamic Range: 97 dB
Channel separation: 100 dB
Wow and Flutter: Unmeasurable (±0,001%, weighted peak)
Distortion: 0,0025%
Output Voltage:2,0V ±0,5 V
Power Requirement: 120 V 60 Hz
Power consumption: 1W
Dimensions: 420 x 123 x 315 mm
Weight: 5,7 kg

H. H. Scott 330D (1961)

The 330D was the ultimate development of Scott's stereo AM/FM tuner line, designed to receive stereo AM/FM simulcasts. The switching provisions were much improved over those of the 330C, to provide more flexibility for the reception of AM/FM simulcasts. The slide switch was changed back to the configuration it had on the 330B, to allow switching the tuning meter between the AM and FM tuner sections, without disturbing reception. The power switch was converted to serve as the mono/stereo switch, in addition to switching power. In addition to positions for power off, monophonic operation, and stereophonic operation, it had a fourth position for stereo phase reverse. The phase revere position was useful in receiving stereo AM/FM simulcasts, to correct for reversed phase at one of the transmitters. In the 330D, a 6CN7 was used as the AM detector, replacing the 6AL5 in the 330C. The 6CN7 provided the extra triode section needed to implement the stereo phase reverse function.

H.H. Scott 330D Features:
Silver Plated Front End
FM Cascode RF End
Multiplex Output Jack
Meter Tuning Indicator
Stereo Phase Reverse Position
Planetary Tuning Mechanism
Wide Range AM Detector
AM Loopstick Antenna
Tape Recorder Outputs
Output Level Controls
Separate AM & FM Sections

Automatic Gain Control

330D Technical Specifications
Sensitivity for 20 dB Quieting :  2 μV
IH FM Sensitivity:  2,5 μV
FM Detector Bandwidth:  2 mc
FM IF Stages:  2
FM Limiting Stages:  2
Harmonic Distortion on FM:  0,8%
Capture Ratio: 6 dB
Am Bandwidth Position:  3
Output Voltage for 100% Modulation:  4 - 6
Total Hum and Noise:  66 dB (below 1  x volt)

Dimensions:  15½ x 5¼ x 13¼ inch (accessory case)

Kenwood KA-6000 (1969)

Solid State Stereo Amplifier
180 watts of IHF standard total music power, enough to drive even low efficiency hi-fi speakers.
The wide power bandwidth of 10 Hz to 50,000 Hz with very low IM distortion.
Kenwood's exclusive low level phono inputs for low level output phono cartridges of 2 mV, 0,5 mV or 0,05 mV.
2 pairs of MAG input terminals for 2 set of record players.
Lever type -20 dB muting switch of quick response for momentary quietness during telephone call etc.
2 dB step type tone controls with tone mode switch.
Blue light indicators for input selector switch.
Lever type high and low filter switches.
Large volume/balance control knob located in center of frontpanel.
Pre-amplifier outputs for use with other power amplifier or multichannel system.
Main amplifier inputs for the use with other pre-amplifier, tuner and tape recorder with pre-amplifier, and also these unputs enable you to drive the main amplifier directly.
Speaker terminals for 2 sets of stereo speaker and front panel speaker selector switch.
Exclusive blow-out proof automatic circuit breaker protects power transistors.

Power Output (continous power; at any frequency from 20 -20,000 Hz):
Each channel driven;
64/64 watts at 4 ohms load.
58/58 watts at 8 ohms load.
42/42 watts at 16 ohms load.
Both channels driven;
41/41 watts at 4 ohms load
455/45 watts at 8 ohms load.
34/34 watts at 16 ohms load.
Total Music Power (IHF):
180 watts at 4 ohm load.
170 watts at 8 ohms load.

Harmonic Distortion: Less than 0,5% at rated output from 20 to 20,000 Hz
Intermodulation Distortion (60 Hz & 7,000 Hz, 4:1):
Less than 0,3% at rated output or at any level of less than rated output;
Less than 0,1% at -3 dB rated output
Frequency Response:
Main Amp. only; 10 Hz to 50,000 Hz ±1 dB
High Level Input; 20 Hz to 50,000 Hz ±1 dB
Sensitivity (from rated output at 8 ohms load):
Phono 1; 2 mV, 0,5 mV, 0,05 mV (switchable)
Phono 2: 2 mV
Tape Head: 2,3 mV
MIC: 2 mV
AUX: 200 mV
Tuner: 200 mV
Tape Play: 200 mV
Main Amp Input: 100 mV
Input Impedance (at 1,000 Hz):
Phono 1 (2 mV); 50 Kohms
Phono 1 (0,5 or 0,05 mV): 200 ohms
Phono 2; 50 Kohms
Tape Head: 100 Kohms
MIC: 100 Kohms
AUX,Tuner,Tape Play: 77 dB
Noise at minimum volume control: 1mV at 8 ohms or 0,0125 milliwatts.

Output Impedance (at speaker terminal):
0,275 ohm at 1,000 Hz
0,39 ohm at 50 Hz
0,275 ohm at 10,000 Hz
Damping Factor (at 1,000 Hz):
58 at 16 ohms load
29 at 8 ohms load
Low Filter (for rumble):
40 Hz Cutoff, 12 dB per octave
80 Hz Cutoff, 12 dB per Octave
High Filter (for scratch ): 8,000 Hz Cutoff, 12 dB per octave
Bass control: ±10 dB at 1000 Hz with 2 dB step switch
Treble Control; ±10 at 10,000 Hz with 2 dB stepswitch
Power Consumption:
AC 110-120/220-230 volts, 50/60 Hz
18 watts quiescent. 190 watts at full power
Dimensions: 16⁵/₁₆" x 5 ⁵/₃₂" x 11 ¹/₃₂" (W x H x D)
Weight: 24,5 lbs

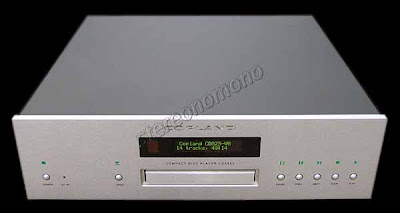

Copland CDA 823

The CDA823 is an evolution of the renowned CDA822 CD-player. While employing the same outstanding DACs and analog amplifiers as its predecessor, double resampling and reading speed are now introduced. Increased over-sampling of 192 kHz is used to avoid the loss of energy and transparency in a complex analog output filter. The CDA823 also allows for future updates of firmware through flash programmable microprocessors.

The CDA823 uses a true 24-bit, high-resolution, dual differential, digital to analog converter with current output for widest dynamic ranges, fast conversion and lowest noise. Jitter distortion arising from time errors is virtually eliminated by sample rate converters and our precision internal master-clock. All audio power supplies are multi-regulated. The output amplifiers are a priority in the design of this audiophile CD-player. Operational amplifiers with their fixed working conditions and sound qualities can become an obstacle when the designer wants to be in control of the final performance. Therefore, CDA823 employs discrete class-A input amplifiers with carefully selected operational points for the specific electronic environment in which they have to perform. The output circuitry provides both fully balanced and single ended outputs.

Frequency response: 20Hz-20kHz +/-0,1dB
S/N ratio ( IHF-A curve ): Better than 100dB
Phase linearity: Less than 0,2” (20Hz-20kHz)
Dynamic range: Better than 100dB
T.H.D.: Less than 0.01 %
D/A converter: 24 bit. Dual differential
Output Analog: Balanced and single ended : 2,0V RMS.
Output Digital: S/PDIF (RCA) 0,5V p-p / 75 ohms
Power consumption: 40W
Nominal voltage: 115V or 230V factory set for destination country only.
Mains voltage: range +/- 12%
Dimensions: 430(W) 110(H) 390(D) mm.
Shipping weight: 10 Kg.
