What is stereo?




There are now two system of high fidelity, monophonic (monaural) and stereophonic. Monophonic is a system that starts from one microphone and is fed through a single high fidelity set. Stereophonic is a double system. Two separate microphones are placed at different sides of the orchestra and two different systems are used to keep the two signals or channels separated. Two separate speakers are used, placed on different sides of you room. Stereo is much like 3-D photography, two slightly different sound reach your ears giving you a new dimension in sound.



H.H. Scott '59

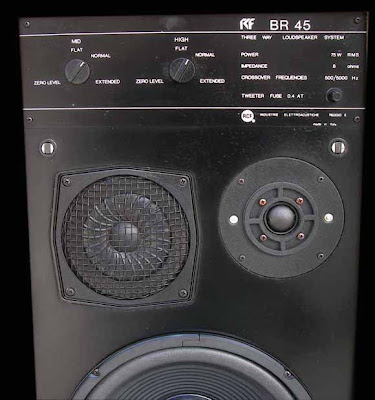

RCF BR 45




CARATTERISTICHE TECNICHE

Tipo di diffusore : cassa chiusa
Numero vie : 3
Altoparlanti : 1 woofer da 25,6 Cm, 1 midrange da 12,5 Cm,
1 dome tweeter da 3,6 Cm
Frequenze di crossover : 500/5.000 Hz
Risposta in frequenza : 20-20.000 Hz
Potenza : 75 W RMS
Impedenza nominale : 8 OhM
Sensibilità : 87 Db / w / m
Note : attenuatori per medi e acuti
Fusibile di protezione anteriore
Griglia : asportabile in tela
Dimensioni (L-H-P) : 32.5 x 59,1 x 30,2 Cm
Peso : 17 kg (cadauna)
Costo in lire : 188.000 Lire (cadauna)
Periodo di produzione : 1979
Labels: , , ,

1 comment:

  1. ADQMay 6, 2021 at 8:29 PM

    I woofer montati sulle BR45 sono i famosi RCF L10p10 , componenti allo stato dell'arte , sicuramente non come quelli montati sugli esemplari delle foto...
