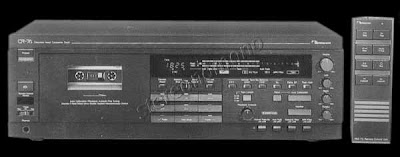

Nakamichi CR-7A

The CR-7A from Nakamichi is a direct drive, three-head cassette deck with Dolby B and Dolby C noise reduction. The deck features manual playback azimuth tuning, asymmetrical dual-capstan transport, auto calibration of azimuth, level and bias andwireless remote control. The display shows remaining time elapsed time, or a four-digit counter reading in all transport modes including fast-forward and rewind. Other features include auto repeat, memoty stop, timer recording/playback, and a two-speed master fader control.

Escape from the ordinary.

Escape to the realism of Nakamichi sound.

The Nakamichi CR-7A Discrete-Head Cassette Deck - the most convenient - and sophisticated - recording instrument conceived by man. It selects equalization automatically - yet you can override the choice. It adjusts azimuth, level and bias automatically - yet you can match azimuth to any tape - from your armchair - with a wirless remote control. Its real-time counter readselapsedtime and time remaining. It will even fade out a recording just before the end - if you'd like.

Specifications

Main Unit

Track Configuration: 4 tracks/2-channel stereo

Heads: 3 (1 x erase, 1 x record, 1 x playback)

Motors:

Tape Transport: FG servo brushless, slotless, coreless DD motor (capstan drive), DC motor (reel drive)

Mechanism: DC motor (cam drive), DC motor (playback head azimuth control)

Power Source: 100, 120, 120/220-240, 220 or 240 V AC 50/60 Hz

Power Consumption: 55 W max.

Tape Speed: 1-7/8 ips. (4,8 cm/sec.) ±0,5%

Wow-and-Flutter: Less than ±0,048% WTD Peak; Less than 0,027% WTD RMS

Frequency response: 18 - 21,000 Hz ±3 dB; 20 - 20,000 Hz ±2 dB

Signal-to-Noise Ratio:

Dolby C-Type NR on [70 μs, ZX tape] Better than 72 dB (400 Hz, 3% THD, IHF A-WTD RMS)

Dolby B-Type NR on [70 μs, ZX tape] Better than 66dB (400 Hz, 3% THD, IHF A- WTD RMS)

Total Harmonic Distortion: Less than 0,8% (400 Hz, 0 dB, ZX tape); Less than 1,0% (400 HZ, 0 dB, SX, EXII tape)

Erasure: Better than 60 dB (100 Hz, +10 dB)

Separation: Better than 37 dB (1 kHz, 0 dB)

Crosstalk: Better than 60 dB (1 kHz, 0 dB)

Bias Frequency: 105 kHz

Input (Line): 50 mV/40k ohms

Output:

Line: 1,0 V (400 Hz, 0 dB, output levelcontrol at max.) 2,2k ohms;

Headphones: 12 mW into 8 ohms (400 Hz, 0 dB, output level control at max.)

Fast-Wind Time: Approx. 80 sec. (with C-60 cassette)

Dimensions: (WxHxD) 435 x 135 x 306 mm, ( 17 x 5⁵⁄₁₆ x 12 inches)

Weight: 9,0 kg, (19 lbs. 13 oz)

Remote Control Unit RM-7C (supplied with CR-7A)

System: Infrared pulse system

Power Suply: DC 3 V (1,5 V x 2)

Dimensions: (WxHxD) 57 x 19 x 175 mm, ( 2¼ x ¾ x 6 inches)

Weight: 140 g, (5 oz)
