What is stereo?




There are now two system of high fidelity, monophonic (monaural) and stereophonic. Monophonic is a system that starts from one microphone and is fed through a single high fidelity set. Stereophonic is a double system. Two separate microphones are placed at different sides of the orchestra and two different systems are used to keep the two signals or channels separated. Two separate speakers are used, placed on different sides of you room. Stereo is much like 3-D photography, two slightly different sound reach your ears giving you a new dimension in sound.



H.H. Scott '59





Audia Flight 100

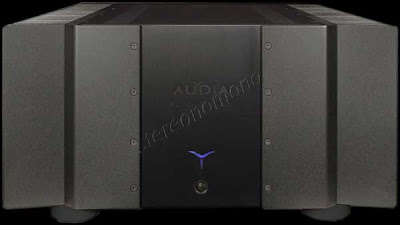

Audia Flight 100 MK4 – A Class Power Amplifier

The uniquely designed circuitry of the Audia Flight 100 MK4 provides a powerful output with ultra-wide bandwidth and a high slew rate for a detailed, fast and smooth sound. The stable, high current capability increases bass response and gives the Audia Flight 100 MK4 control over even the most difficult loudspeaker loads. The Audia Flight 100 MK4 allows the listener to hear the recording in a powerful, accurate and musical way. The Class A, dual-mono design ensures high resolution and low noise. Two 700VA epoxy sealed toroidal transformers, sixteen transistors per channel enable the amplifier to deliver wide dynamic range with greater headroom extension.

Technical Data

Output power: 100/200/400 W rms 8/4/2 ohm

Gain: 26 dB

Input sensitivity: 1.41 Vrms

Frequency response: 0,3 Hz ÷ 1 MHz (1W rms -3dB)

Slew-Rate (on 8 ohm): > 200 V/μS

THD: < 0,05 %

S/N Ratio: 108 dB

Input impedance Unbalanced: 24, 28, 42, 57 Kohm

Balanced: 23 Kohm

Damping factor: 85 (on 8 ohm)

Main voltage AC (50/60Hz): 100, 110-115, 220-230, 240 V

Power consumption: 500 W, 1400 W MAX

Dimensions (W x H x D): 470 x 245 x 540 mm

Weigth: 52 Kg

Shipping dimensions and weigth: 540x400x620mm (wxhxd) - 60 Kg
