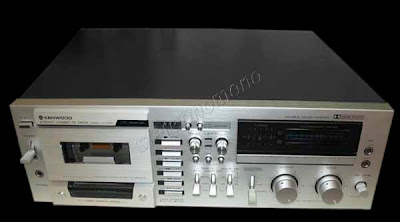

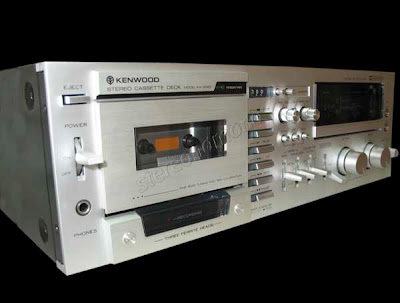

Kenwood KX-2060 (1981)


Every advanced design feature of the KX-2060 is designed to provide you with the highest quality in cassette tape recordings.
Features: Metal tape capability, Fine-bias tuning, 3-head design, Double Dolby noise reduction with LED indicator, Three position Bias selector, Three position Equalization selector, All electronic Fluoroscent display, Memory Index, MPX filter, Three digit tape-counterEvery advanced design feature of the KX-2060 is designed to provide you with the highest quality in cassette tape recordings.
Features: Metal tape capability, Fine-bias tuning, 3-head design, Double Dolby noise reduction with LED indicator, Three position Bias selector, Three position Equalization selector, All electronic Fluoroscent display, Memory Index, MPX filter, Three digit tape-counter
Kenwood engineers have again advanced the art of cassette deck design with the remerkable KX-2060, a superbly engineered deck with performance characteristics equal to the best available today. The KX-2060 incorporates many advanced design features such as the ability to record and playback every kind of tape - including the latest high-output metal tape. A three-position tape equalization selector and a variable fine-bias adjustor using two oscillators, plus calibratable double Dolby noise reduction circuitry, ensure that every tape will perform to its limits. Moreover, the 3-head design offers important advantages both in optimum sound quality and monitoring convenience. The extraordinary electro-magnetic performance of the KX-2060 is fully complemented by mechanical excellence. A new constant tension tape transport, and Kenwood's own rugged two-belt drive system, all ensure that nothing stands in the way of the highest quality recording and playback of tapes. The KX-2060 is also very easy to operate, and features electronic push button controls and advanced fluorescent peak level meters. Its carefully laid out front panel is designed to match equivalent Kenwood amplifiers and tuners.

Specifications
Type: Front Loading Stereo Cassette Deck with Dolby System
Track System: 4-track, 2-channel Stereo/mono Record and Playback
Recording System: AC Bias (Bias Frequency: 105 kHz)
Erasing System: AC Tape Speed: 4,76 cm/sec. (1-7/8 ips)
Heads: Three Ferrite Heads
1x Record/Playback
1x Erasing
Motor: Electronicaly Controlled DC Motor
Fast Winding Time: Approx. 80 sec. With C-60 tape
Frequency Response:
Normal Tape: 20 Hz - 18,000 Hz (25 - 17,500 Hz, ±3 dB)
CrO₂ Tape: 20 Hz - 19,000 Hz (25 - 18,000 Hz , ±3 dB)
Metal Tape: 20 Hz - 19,000 Hz (25 - 18,000 Hz, ±3 dB)
S/N Ratio (Dolby ON over 5 kHz):
Normal Tape: 66 dB
CrO₂ Tape: 69 dB
Metal Tape: 70 dB
S/N Ratio (Dolby Off):
Normal Tape: 56 dB
CrO₂ Tape: 59 dB
Metal Tape: 60 dB
Total Harmonic Distortion: Less than 1,0% (at 1 kHz, 0 VU with Metal Tape)
Wow & Flutter: 0,04% (WRMS)
Input Sensitivoty/impedance:
Line x 2: 77,5 mV/150 kΩ
DIN x 1: 1,4 mV/10 kΩ
Microphones x 2: 0,19 mV/56 kΩ
Output Level/Load Impedance:
Line x 2: 775 mV (0 VU)/100 kΩ
DIN x 1: 775 mV (0 VU)/ 100 kΩ
Headphones: 48,9 mV/8 Ω
Power Requirement: AC 120 V, 60 Hz
Power Consumption: 40 watts
Dimensions (W x H x D): 440 x 153 x 377 mm (17-5/16 x 6 x 14-7/8 inch)
Weight: 9,3 kg (20,5 lbs)
