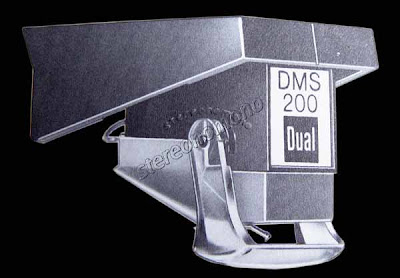

DUAL DMS 200 - Cartridge

DUAL DMS 200

Technical data

Stylus: DN201, 0,6 ±0,1 mil spherical diamond stylus for micro-groove and stereo records

Recommended stylus pressure: 2,5 g (2 -3 g)

Frequency range: 20 c.p.s. to 20 k c.p.s.

Output: ≥ 0,7 mV/1cm/sec perchannel at 1 k c.p.s.

Output difference between channels: Max. 2 dB at 1 k c.p.s.

Isolation between channels: Min. 20 dB at 1 k c.p.s.

Compliance: Horizontal 18 x 10-⁶ cm/dyn; Vertical 18 x 10-⁶ cm/dyn

Intermodulation distortion (FIM): At 2,5 g stylus pressure, 8 cm/sec velocity, ≤ 0,7%

Net weight: 7 p

End resistance: 47 kOhm

Impedance: 5,5 kOhm at 1 k c.p.s.

Ohmic resistance: 1,2 kOhm

Inductance: 850 mH
