What is stereo?




There are now two system of high fidelity, monophonic (monaural) and stereophonic. Monophonic is a system that starts from one microphone and is fed through a single high fidelity set. Stereophonic is a double system. Two separate microphones are placed at different sides of the orchestra and two different systems are used to keep the two signals or channels separated. Two separate speakers are used, placed on different sides of you room. Stereo is much like 3-D photography, two slightly different sound reach your ears giving you a new dimension in sound.



H.H. Scott '59

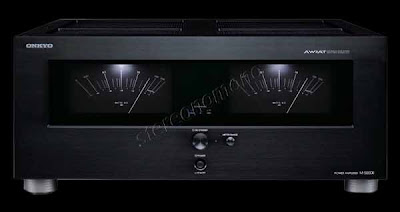

Onkyo M-5000R


Thrill to the Visceral Power of Stereo
Music, when you hear it in all its glory, has the power to lift the spirits and transport you into another realm. Driving you there in audiophile style is Onkyo’s newest hi-fi power amplifier, the M-5000R. Signal quality on the M-5000R is meticulously preserved by new AWRAT technology, while three-stage inverted Darlington circuitry provides extremely efficient power output. Massive twin toroidal transformers and four 27,000 µF capacitors work to stabilize the power supply and current, respectively. And to minimize errors in stereophonic playback, the amplifier incorporates a totally symmetrical alignment of power devices for left and right channels.
Special Features
AWRAT (Advanced Wide Range Amplifier Technology)
Quad Push-Pull Amplification Design with Three-Stage Inverted Darlington Circuitry
Two Massive Toroidal Transformers with Sub Transformer
Four Large 27,000 µF Capacitors
Balanced XLR Input for Monaural Amplification in BTL Mode

Specifications
Power Output (2 ch stereo)
4 ohm: 150 W/Ch (20Hz - 20kHz, 0.05%, 2ch driven, FTC)
4 ohm: 170 W/Ch (1kHz, 1%, 2ch driven, FTC)
8 ohm: 80 W/ch (20Hz - 20kHz, 0.05%, 2ch driven, FTC)
8 ohm: 100 W/Ch (1kHz, 1%, 2ch driven, FTC)
Power Output (BTL mono)
6 ohm: 220 W/Ch (20Hz - 20kHz, 0.05%, 1ch driven, FTC)
6 ohm: 250 W/Ch (1kHz, 1%, 1ch driven, FTC)
8 ohm: 180 W/Ch (20Hz - 20kHz, 0.05%, 1ch driven, FTC)
8 ohm: 200 W/Ch (1kHz, 1%, 1ch driven, FTC)
Dynamic Power
1 ohm: 460 W
2 ohm: 320 W
3 ohm: 245 W
4 ohm: 196 W
6 ohm: 142 W
8 ohm: 110 W
THD + N: 0.005% (1kHz, Half power); 0.02% (20Hz-20kHz, Half power)
Input Sensitivity and Impedance: 1.4V/10 k-ohms (BTL); 700mV/10k-ohms (RCA)
Frequency Response: 10 Hz - 100 kHz/0dB, -1db (1 W); 1 Hz - 250 kHz/-3dB, (1 W/8ohm)
Signal to Noise Ratio: 110 dB (RCA, IHF-A)
Speaker Impedance
RCA Stereo: 4 ohms - 16 ohms
XLR mono: 6 ohms - 16 ohms (BTL)
Power Supply: AC 120V~, 60 Hz
Power Consumption: 8.4 A
Dimensions: 17 1/8" x 7 3/8" x 17" (435x187.5x432.5mm)
Weight: 51.8 lbs (23.5 kg)
