What is stereo?




There are now two system of high fidelity, monophonic (monaural) and stereophonic. Monophonic is a system that starts from one microphone and is fed through a single high fidelity set. Stereophonic is a double system. Two separate microphones are placed at different sides of the orchestra and two different systems are used to keep the two signals or channels separated. Two separate speakers are used, placed on different sides of you room. Stereo is much like 3-D photography, two slightly different sound reach your ears giving you a new dimension in sound.



H.H. Scott '59

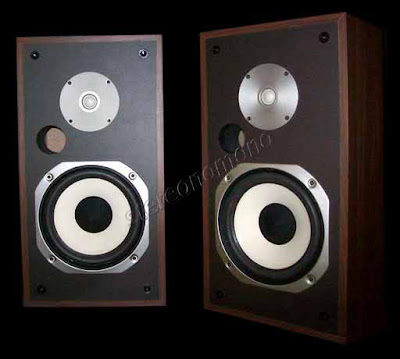

SIARE Loudspeakers GA 200

A loudspeaker 20 cm ( 22 SPCH ) equipped with a coil at high heat dissipation and large diameter.

A dome tweeter SIARE TWG for high return at the same time a very high quality in high frequency.

Tweeter TWG has all the characteristics of TWK with a lower resonant frequency, a response curve and power more extensive. Allows you to adapt to all types of speakers. A system of internal damping can finally get a response curve very linear in all the extension of the high range.


Diameter: 110 mm

Oppening baffle: 66 mm

Induction flux: 13,000 gauss

Bandwitch: 3,5 -20 kHz

Resonance frequency: 1 kHz

Power rating: 60 (5,000 Hz)

Volume:

Impedance: 8 ohms

Sensitivity: 90 dB 1W/1m

Rated output power: 40 W

Input impedance: 8 ohms

Modulus value of impedance: ≥ 6.4 ohms

Power / 94 dB: 5 W / m

Frequency response: 50 - 22,000 Hz, ± 4 dB

Electric power corresponding to a spatial acoustic pressure of 1 Pa: 5 W, BR 1m

THD ratio:

125 - 1000 Hz: <3%

1000 - 4000 Hz: <1%

Weight: 8 kg
