What is stereo?




There are now two system of high fidelity, monophonic (monaural) and stereophonic. Monophonic is a system that starts from one microphone and is fed through a single high fidelity set. Stereophonic is a double system. Two separate microphones are placed at different sides of the orchestra and two different systems are used to keep the two signals or channels separated. Two separate speakers are used, placed on different sides of you room. Stereo is much like 3-D photography, two slightly different sound reach your ears giving you a new dimension in sound.



H.H. Scott '59

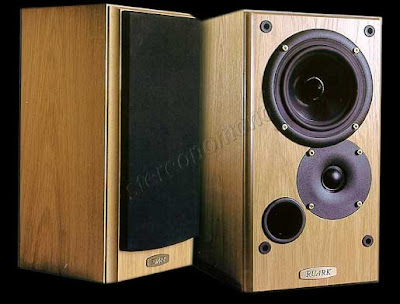

Ruark Classic Icon

Ruark's new entry level loudspeaker, the Icon, replaces the popular Swordsman model. It is a compact two-way reflex-loaded design using a 140mm bass/midrange driver and a 25mm doped fabric type tweeter.
A simple eight-element crossover is employed, centred on 2200Hz. The bass driver has been custom built for the Icon. Finished in a choice of real wood veneers.

Specifications "Ruark Serie Classic"
Monitor Loudspeakers.
System type: Bass Reflex with 2 Ways.
Drive units:
Bass/Mid: 140mm treated NRSC paper cone, High loss rubber surround, injection moulded chassis, low leakage double magnet system
Tweeter: 25mm fabric soft dome, ferrofluid cooled and damped with low leakage balanced magnet assembly.
Frequency: 58 Hz - 20 kHz ±3 dB
Sensibility: 88 dB/1 Watt
Crossover frequency: 2,2 kHz (Precision audio grade components, 8 element)
Nominal Impedance: 8 ohms
Amplifier Requirements: 20 - 100 watts
Cabinet: Stand or shell mount ACZD. Damped particle board with MDF front and Rear baffle
Finish: Veener in Natural Cherry, oak, walnut, rosewood and black oak
Dimensions (HxWxD): 350 x 190 x 260 mm
Weight: 6 Kgs each.
