What is stereo?




There are now two system of high fidelity, monophonic (monaural) and stereophonic. Monophonic is a system that starts from one microphone and is fed through a single high fidelity set. Stereophonic is a double system. Two separate microphones are placed at different sides of the orchestra and two different systems are used to keep the two signals or channels separated. Two separate speakers are used, placed on different sides of you room. Stereo is much like 3-D photography, two slightly different sound reach your ears giving you a new dimension in sound.



H.H. Scott '59

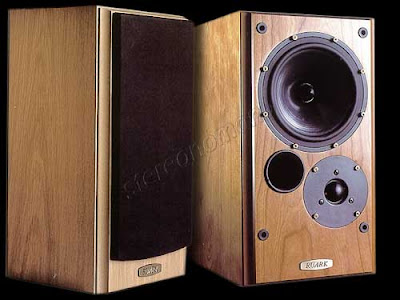

Ruark Classic Sceptre

Ruark's new Classic Serie loudspeaker, the Sceptre, replaces the popular Swordsman model. It is a compact two-way reflex-loaded design using a 170 mm bass/midrange driver and a 28 mm silk fabric type tweeter.
A simple eight-element crossover is employed, centred on 2000 Hz. The bass driver has been custom built for the Sceptre. Finished in a choice of real wood veneers.


Specifications
"Ruark Serie Classic"
Monitor Loudspeakers.
System type: Bass Reflex with 2 Ways.
Drive units:
Bass/Mid: 170 mm treated paper cone, pure rubber surround,precision cast chassis,high flux low leakage double magnet system
Tweeter: 28 mm silk fabric dome, ferrofluid cooled and damped, balanced magnet construction.
Frequency: 50 Hz - 20 kHz ±3 dB
Sensibility: 88 dB/1 Watt
Crossover frequency: 2 kHz (Precision audio grade components, 8 element)
Nominal Impedance: 8 ohms
Amplifier Requirements: 20 - 100 watts
Cabinet: Stand or shell mount ACZD. Damped particle board with MDF front and Rear baffle
Finish: Veener in Natural Cherry, oak, walnut, rosewood and black oak
Dimensions (HxWxD): 380 x 210 x 300 mm
Weight: 10 Kgs each.
