Accuphase M-60

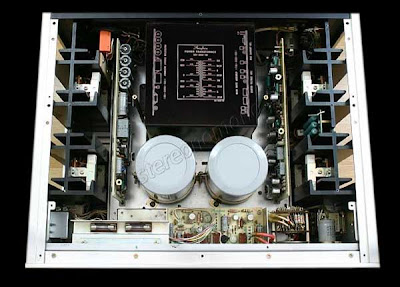

The Accuphase Monophonic Power Amplifier Model M-60 was completed after extensive engineering efforts in which perfection was sought without compromises. Monophonic design was chosen to completely eliminate any possibility of inter-channel interferences from power supply circuit and wirings, and also to feature a handy weight so that it can be handled even by one person. The M-60 provides 19" rack mounting facilities and a cannon type input terminal for studio monitor or PA system applications.

Features:
Monophonic Design Advantage for No Inter-Channel Interference
Every Stage Push-Pull Driven for Greatly Improved Stability, Linearity and Dynamic Range
Heavy Duty, large Energy Power Supply
Logarithmic Scale Peak level Output Meter
Subsonic Filter to Eliminate Noise below Audible Range
1 dB step Attenuator
Cannon Type Input Connector
Provision for Ventilation Fan Installation

Specifications
Power Output (from 20Hz to 20 kHz, 0,1% THD):
450 watts, min. RMS at 4 ohms,
300 watts,min. RMS at 8 ohms,
150 watts, min.RMS at 16 ohms
THD (from 20 Hz to 20 kHz at any power output from 1/4 watt to rated power):
4 ohms; 0,1% max.
8 ohms; 0,1% max.
16 ohms; 0,1% max.
Intermodulation Distortion: 0,1% at rated power output (for any combination of frequencies between 20 Hz and 20 kHz)
Frequency Response:
20 Hz - 20,000 Hz; +0, -0,2 dB at rated power output
2 Hz - 90,000 Hz; +0, -3 dB at rated power output
Damping Factor: 45 (at 8 ohms load, 20 - 20,000 Hz)
Rise Time: 3 μSec.
Slewing rate: 25 V/μSec.
Input Sensitivity and Impedance: (2,0 Volts, 100 kohms, for rated output at the max. level control)
Hum and Noise: 100 dB below rated output
Output Load Impedance: 4,8 and 16 ohms
Subsonic Filter: cutoff frequency 17 Hz, 18 dB/oct.
Power Level Meter: switchable for Volume Level and Peak level, calibrated to read 0 dB - 300 watts into 8 ohms load and capable of directly reading down to -50 dB (3 mW)
Attenuator: precision, 1 dB stepping type
Power Requirement: 100, 117, 220, 240 V, 50/60 Hz
Power Consumption: 65 watts at zero signal output;
540 watts at rated otput (8 ohms load)
800 watts at rated output (4 ohms load)
Semiconductor Complement: 47 transistors, 51 diodes, 3 IC's
Dimensions (W x H x D): 482 x 170 x 345 mm (19" x 16-11/16" x 13-9/16")
Weight net: 27 kg (59,4 lbs)
