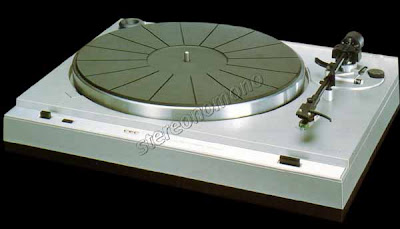

CEC ST-110

Belt-Drive Automatic Turntable

The all new St-110 has many improved features and added quality for high performance. The compact design contains a wealth of operational excellence combined with simplicity.

High Precision Drive Motor

Platter rotation is accurately controlled by the precision 4-pole synchronous motor. The shaft and bearings have been machined to close tolerances to eliminate noise or vibration.

Vibration Isolation

External vibrations can not influence the operation of the ST-110 because an original vibration isolation system is incorporated into the cabinet design. This combination of damping rubber and vibration matched steel springs effectively isolate the platter from outside vibrations.

Low Mass,Straight Tonearm Plus Low Mass Cartridge

Tracability is greatly improved with the low mass, straight tonearm and the low mass cartridge which are incorporated into ST-110. Resonance problems are solved by matching the arm system to a fundamental frequency of 11 Hz for optimum performance.

Low Rumble

Exhaustive vibration analysis resulted in the design of a motor suspension which provides minimum rumble. Vibrations were even further reduced by dynamic balance of the motor itself.

Oil-Damped Cueing

Oil -damped cueing of St-110 brings the stylus to rest in the groove with such precision and gentleness your records will no longer be damaged on cueing. lead-in is safe, easy and accurate.

Cost performance

High performance and low cost are main features of this greatly improved turntable.

SPECIFICATIONS

Turntable

Motor: 4-pole synchronous motor

Speeds: 33⅓ and 45 r.p.m.

Wow & Flutter: 0,8% (WRMS), ±0,12% (DIN 45507)

Rumble: 36 dB (unweighted) DIN 45539A, 63 dB (weighted) DIN 45539B

Turntable platter: 302 mm aaluminium alloy die-cast

Tonearm: Straight-line tubular, static balance type with removable headshell and antiskating device

Effective lenght: 222 mm

Overhang: 16,8 mm

Adjustable tracking force: 0 - 2,5 g with direct readout weight

Usable cartridge weight: 4 - 6,5 g

Cartridge (optional): Moving Magnet type, model MM3 with 0,6 mil diamond stylus

Frequency response: 20 -20,000 Hz

Output voltage: 3 mV ±3 dB at 1 kHz 3,54 cm/sec

Channel balance: Within 2 dB at 1 kHz

Channel separation: More than 18 dB at 1 kHz

Load resistance: 47 Kohm

Weight: 4,6 g

Optimum stylus force: 1,8 g

General

Automatic functions: Automatic return and shutoff

Power source: 120/220 V, 50/60Hz

Power consumption: 8 watts

Dimensions: 420 x 121 x 365 mm (W x H x D)

Weight: 4 kg (nett)
