What is stereo?




There are now two system of high fidelity, monophonic (monaural) and stereophonic. Monophonic is a system that starts from one microphone and is fed through a single high fidelity set. Stereophonic is a double system. Two separate microphones are placed at different sides of the orchestra and two different systems are used to keep the two signals or channels separated. Two separate speakers are used, placed on different sides of you room. Stereo is much like 3-D photography, two slightly different sound reach your ears giving you a new dimension in sound.




H.H. Scott '59





Audia Flight CD One M

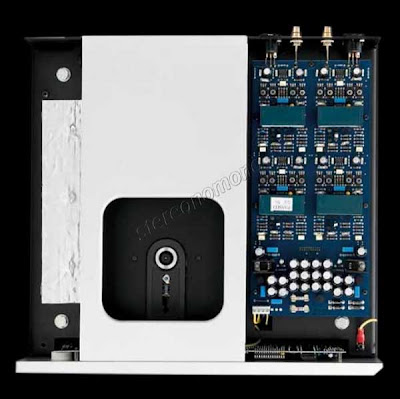

The Audia Flight CD One is a reference compact disk player that will bring a new sense of realism to your CD collection. Incorporating innovative engineering design, utilizing the highest quality parts and featuring an elegant yet modern style teamed with rock solid construction, the Audia Flight CD One presents a captivating sonic picture of the original performance. The super rigid chassis, Philips Pro-2 cast metal transport, 24 bit/192KHz upsampling converter and the ultra precision temperature compensated reference clock permits maximum data retrieval with a completely non fatiguing sound. The three separate toroidal transformers and the Class A full balanced analog output sections with discrete components, result in maximum dynamic range.

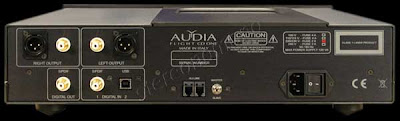

The Audia Flight CD One is an investment for the future. It has two digital inputs, one SPDIF and one USB, both 24 bit 192 KHz, insulated.
The USB input has insulated by ADuM (analog devices) to prevent any noise from the PC.
When the USB is used together with a player application such as FooBar or WinAmp (available for free on Internet), you can transfer stream music files to internal converter at 192kHz/24bits maximum frequency/resolution, avoiding undesired PC or MAC audio mixer data processing during the data transfer from hard disk to interface.
Technical Data
Frequency response 0.5 Hz ÷ 20 KHz ± 0.1dB
Upsampling 192 KHz
Dynamic Range 122 dB
THD + Noise > -100 dB
Maximum output voltage 2.5 Vrms
Output impedance 600 ohm
Input sampling rates 32 – 192 KHz
Resolution rates 16 – 24 bit
Main voltage AC (50-60Hz) 100, 110-115, 220-230, 240 V
Power consumption 70 W
Dimensions and weigth 420x113x380mm (wxhxd) - 15 Kg
Shipping dimensions and weigth 570x270x540mm (wxhxd) - 18 Kg
