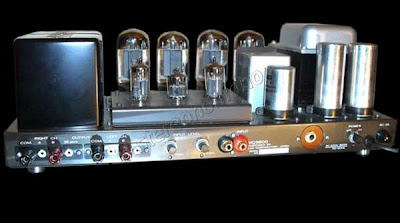

Luxman MQ 3600

The MQ3600 offers mighty 50 watts RMS output power per channel thanks to class AB, push-pull operation with the LUX's exclusive giant triode output tube 8045G.

The 8045G is quite an epock-making triode output tube specially developed for audio amplifiers under close cooperation with NEC. Unprecedented 45 W plate-dissipation has been realized by adopting special 5-layer metal plate for the plate-electrode with the heat-radiating-fin, thus realizing superb heat-radiation effect. To make a good combination with the 8045G, a new powerful output transformer OY15-3.6K-HP is developed, which made it possible to obtain such high power output 50W/ch under full command of accumulated circuit technique. Further the insertion-loss is reduced, and the high-frequency characteristic is much improved.

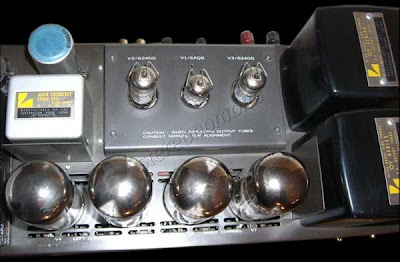

At the driver circuit of so-called orthodox "Mullard" type is placed, which provides large output voltage and gain in quite stable condition. Here, the 6240G is used - a twin triode tube featuring low inner resistance, medium degree of amplification and large plate-dissipation, which is exclusively developed for high-voltage-driver stage. Therefore, the 6240G is quite suitable for the driver tube of giant output power amplifier. We put a reasonable difference on the plate-resistors to obtain equivalent gain between the two driver tubes.

At the first stage, we adopted the 6AQ8 which offers low inner resistance and large amplification, thus keeping impedance at the plate circuit quite low and preventing deterioration at the high frequency characteristic. Also the phase compensation circuit is banished which tends to deteriorate distortion in high frequency range. With meticulous care, we delved into the inherent characteristics through all the amplifying stages to realize excellent distortion characteristic from the low frequency up to the high frequency range by applying only 16 dB amount of major negative feedback. Of course high stability is assured.

The MQ3600 can be used as a monaural power amplifier of maximum 100 W output power when the right and left channel are connected in parallel. This might be an interesting usage of the MQ3600.

Specifications

Output power: 2 x50 W

Total Harmonic Distortion: no more than 0,5% (50 W, 1 kHz)

Frequency Response: 10 Hz to 35 kHz (-1 dB)

Input Sensitivity: 850 mV

Residual Noise: no more than 0,5 mV

Damping Factor: 14 (8 ohms, 1 kHz)

Power Consumption: 220 V - 300 watts

Dimensions (W x H x D): 465 x 168 x 206 mm

Weight: 17 kg (38 lbs)
