SONY PS-5520


STEREO TURNTABLE SYSTEM

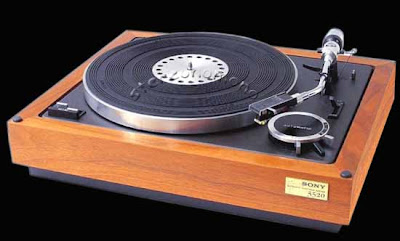

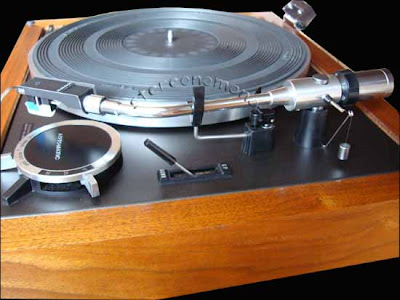

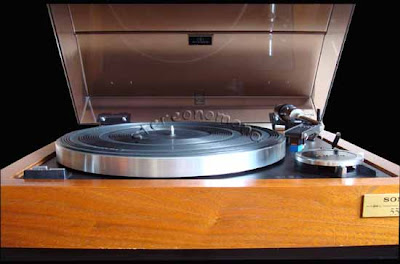

SONY PS - 5520 BELT DRIVE (1972)

The Sony model PS-5520 is a well engineered and versatile stereo turntable  system that can be operated automatically or manually.
Automatic operation is accomplished using only the operating lever.
This model has many important features which contribute to the faithful reproduction of your records;
a static balance tonearm, an effective anti-skating compensator, a 4-pole hysteresis synchronous motor, and so on.
The PS-5520 tracks records faithfully, thereby preserving their original brilliance for many plays.

This model is also compatible with the most advanced cartridges currently available.





Specifications
Platter:  11-7/8" die-cast aluminium alloy
Platter Weight:  2lb 3oz
Speeds:  33 and 45 rpm
Drive System:  belt drive
Motor:  4-pole condenser hysteresis synchronous
Wow and flutter:  less than 0.1% WRMS
Signal-to-Noise Ratio:  better than 43 dB
Tonearm:  static balance
Overall Arm Length:  294 mm
Effective Length:  215 mm
Overhang:  15 mm
Stylus Force Adjustment:  from 0 to 3 g
Cartridge Weight Range:  from 4 to 14 g
Cartridge:  VM-22GA induced magnet
Frequency Range:  20 Hz to 20 kHz
Channel Separation:  25 dB
Output:  4 mV
Stylus Force:  1.5 to 2.5 g
Stylus:  conical 0.5mil diamond
Weight:  6.7g
Dimensions (W x H x D) :  17- 3/4 x 6-7/8 x 15-9/16"

Weight:  18lb 11oz
