What is stereo?




There are now two system of high fidelity, monophonic (monaural) and stereophonic. Monophonic is a system that starts from one microphone and is fed through a single high fidelity set. Stereophonic is a double system. Two separate microphones are placed at different sides of the orchestra and two different systems are used to keep the two signals or channels separated. Two separate speakers are used, placed on different sides of you room. Stereo is much like 3-D photography, two slightly different sound reach your ears giving you a new dimension in sound.



H.H. Scott '59

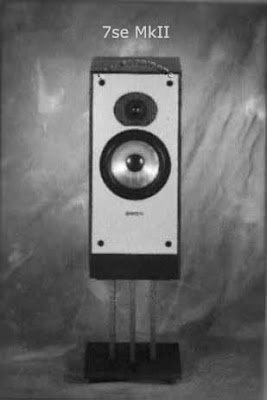

PARADIGM 7se MkII

The serch for further improvements over the 5seMkII in spectral linearity and dynamic power output led to the development of the 7seMkII. With a larger enclosure and higher-power drivers, the 7seMkII achieves deeper bass and greater dynamic output ability. The more sophisticated dividing network enables even better musical clarity and three-dimensional imaging.Here is remarkable low-colouration performance with wide bandwidth, low distortion and high power handling. The 7seMkII exemplifies the idea that strict adherence to the principle of simplicity and elegance of design results in a product whose performance is second to noneat a price with which none can compete.
DESIGN:
2-driver, 2-way bass reflex. Quasi-3rd order resistive port
CROSSOVER: 3nd order electro/acoustic - 1,9 kHz
DRIVER COMPLEMENT:
One 25 mm (1") MkII/5, high-frequency driver
One 210 mm (8") MkII/5, bass/midrange driver
PERFORMANCE:
Low Frequency Extension; 30 Hz (DIN)
Frequency Response On Axis (0⁰); ± 2 dB from 50 Hz to 20 kHz
Frequency Response Off Axis (30⁰); ± 2 dB from 50 Hz to 15 kHz
Sensitivity-Room/Anechoic; 89 dB / 86 dB
Suitable Amplifier Power Range; 15 - 150 watts
Maximum Input Power; 100 watts
Nominal/Minimum Impedance; 8 ohms / 4 ohms
Racommended Stands; PREMIER w-30 or m-30; w-40 (shown) or m-40
PHYSICAL:
Internal Volume; 40 litres (1,4 cuf)
Height; 64 cm (25")
Width; 28 cm (10 ¾")
Depth; 34 cm (13 ¼")
Weight; 34 kg (75 lbs) per pair
